AXIS Rear Floaters



NEW!

REAR FLOATERS



updated 6/2014


The all-new range of the patented AXIS Design in a very light-weight rear floater concept are in stock with most 220mm applications. The 240mm floaters are available for the Ducati 999 & Desmosedici as well as many KTM models.  The 245mm Ducati units are now in stock for all the 4-hole mount models.

NEW:  245mm x 6-hole mount Ducati rear floaters now available, these are simple bolt-on upgrades that fit a wide range of models including:

  • 600/620/695/696
  • 750SS/M750
  • 800SS/M800/851/888
  • 900SS/900SL/900CR/M900
  • ST2/ST3/ST4
  • Sport Classic Series / GT
  • 899 Panigale

Will also accommodate the `98-01 Yamaha R1 (with aftermarket wheels)

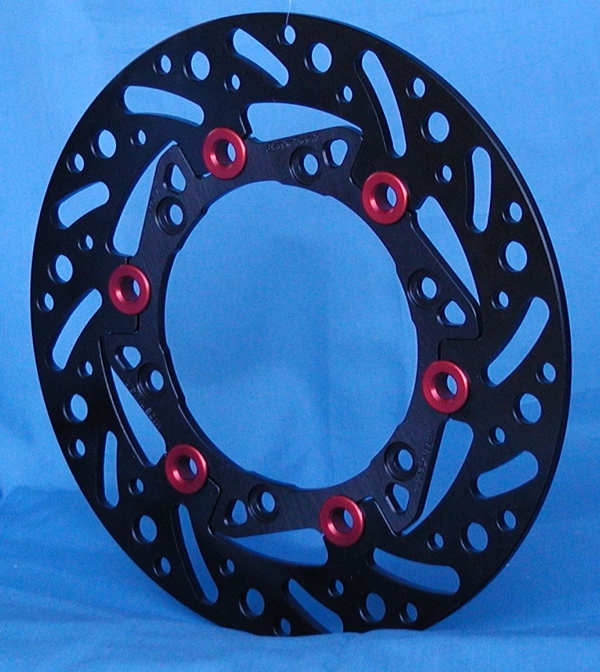

NEW!  BTD247R

Comparative weight:

   • BTD247R:  245mm x 5.0mm AXIS/Iron, 1lb  11.0oz (765g)
   • BTD247RS: 245mm x 5.0mm AXIS/Cobra SS, 1lb  10.2oz (744g)
245mm x 4.0mm OE rotor:
   • OE stainless fixed mount monolithic rotor, 1lb  14.7oz (870g)



NEW!  BTD247RS

 Also new is the 2014 model Ducati 899 Panigale:  BTD248R & RS

Virtually identical to the above BTD247R rear floater but tailored to precisely fit the OE ABS sensor ring





220mm Applications include:

Aprilia RSV's & V4
Benelli Tornado's

Honda CBR's, RC51 & VTR
Kawasaki ZX10R & ZX6R
KTM RC-8

Suzuki GSX-R's
Triumph 675, Speed Triples & Daytona's

Yamaha YZF-R1 & R6



These remarkably lightweight and patented full-floaters weigh in at a stealthy 640g to 680g, depending on application.

Unique in design and appearance, the AXIS rear floaters will be a limited premium line intended for late model European and select Japanese Sportbikes (for use with OE calipers).  Incorporating our patented floating architecture which is the hallmark of our AXIS front floaters, these lightweight 100% billet units weigh at 10-35% less than the OE units.  All of the considerable braking forces are channeled through the trademarked Direct-Link architecture, comprising over an 800% increase in surface area load transfer as compared to conventional floating brake rotors...simply far superior by design!  Our race-spec ductile iron units improve overall brake response with not just more power but strategically, considerably improved control and modulation at the brake pedal (as well as reducing brake drag).

Granted, rear brakes have historically not been a significant player in the Sportbike market, but never before has a truly innovative full-floating rotor been developed and targeted for this application.  With it's distinctive design, improved performance parameters and huge weight reduction, we bring an entirely new dimension to this element of braking technology.

Intended for use with OE calipers, the new AXIS/Rear floaters will be offered for nearly all late model European and select Japanese Sportbikes.                             NOTE:  Requires rear wheels with "Post" type mounting face that allows adequate space for the bobbins to extend through the backside of the center carrier.  Will not fit on the following OE rear wheels (without user end modification to the wheel) but rather are intended for use with the full range of Aftermarket wheels employing the OE mounting pattern:
    •    Honda CBR's
    •    Suzuki GSX-R's
    •    Yamaha YZF-R1 & R6

SPECIAL NOTE:  All Japanese Sportbikes with Nissin calipers require a small amount of relieving of the OE caliper bracket to provide clearance for the floater button flangehead.

The all-new AXIS Rear Floaters are the perfect upgrade for those moving to the higher performance Brembo HPK Billet rear caliper conversion kits.

DUCATI 1098/1198 and HyperMotard, M1100, 848 series includes the requisite speedo sensor triggers.
IMPORTANT FITMENT NOTE: The ABS sensor ring of the 4-hole mount models must be relieved around the bobbin area in order to allow space for the OE sensor ring to sit flush on the carrier.


AXIS/Iron Black GunKote:  This is a rust inhibiting coating which is thermally bonded on to minimize corrosion.  It must be cleared from the pad sweep area before the rotors become fully functional.  Please click here for the one page instruction guide:  AXIS Iron Rotor Clearing instructions

 Entirely made in the U.S.A.

 • Red bobbins are standard (blue and black optional).

Brake Pad recommendations: utilize either the Ferodo Platinum organic or for a more responsive rear brake, the HH-rated SinterGrip ST brake pads.

Click here for PDF application guides:

• Aprilia

• Ducati

• Euro Models

• Honda

• Kawasaki

• KTM

• Suzuki

• Yamaha

NEW!

AXIS/Cobra 245mm x 5mm Rear Floater;  Ducati 1098, 1198 & StreetFighter

See downloadable application guide for complete details (speed triggers standard)

IMPORTANT FITMENT NOTE: The ABS sensor ring of the 4-hole mount models must be relieved around the bobbin area in order to allow space for the OE sensor ring to sit flush on the carrier.

 NEW!

AXIS/Iron 245mm x 5mm Race-Spec Rear Floater;  Ducati 1098, 1198, 1199 & StreetFighter

Comparative weight:
   • 245mm x 5.0mm AXIS/Iron, 1lb  10.7oz (756g)
   • 245mm x 5.0mm AXIS/Cobra SS, 1lb  9.8oz (730g)
1098R 245mm x 5mm OE rotor:
   • 245mm x 5mm OE stainless rotor, 2lbs  3.7oz (1012g)





NEW!

AXIS/Cobra 245mm x 5mm Rear Floater; Ducati HyperMotards, M1100, 848 & others

See downloadable application guide for complete details (speed triggers standard)

IMPORTANT FITMENT NOTE: The ABS sensor ring of the 4-hole mount models must be relieved around the bobbin area in order to allow space for the OE sensor ring to sit flush on the carrier.





AXIS/Iron 220mm x 5mm Rear Floater; Aprilia RSV Mille & V4 Series, plus

Yamaha YZF-R1/R6 (aftermarket wheels) - Weight: 1lb 8.1oz [682g]







AXIS/Iron 220mm x 5mm:   GSX-R (aftermarket wheels)  -  Weight 1lb 8.0oz [680g]

Note:  Direct bolt-on for the 2011 GSX-R600/750 O.E. Wheels





BTS220RS

AXIS/Cobra 220mm x 5mm:   GSX-R (aftermarket wheels)  -  Weight 1lb 7.5oz [665g]

Note:  Direct bolt-on for the 2011 GSX-R600/750 O.E. Wheels





 BTA220RS

          AXIS/Cobra:  Aprilia RSV/4 220mm x 5mm Rear Floater, 1lb 7.1oz (656g), stainless steel

          Yamaha YZF-R1/R6  (aftermarket wheels)



BTH220R

           AXIS/Iron:  Honda CBR 220mm x 5mm Rear Floater, Billet Iron Race Series for Aftermarket and

           modified OEM wheels

           Kawasaki ZX10R/ZX6R (OEM & aftermarket wheels)





 BTK220RS

           AXIS/Cobra:  Honda CBR 220mm x 5mm Rear Floater, 1lb 6.6oz (640g), stainless steel

           Kawasaki ZX10R/ZX6R (OEM & aftermarket wheels)

           Shown with optional black hard-anodized bobbins, red is standard
